Akai Pro MPC Series | Adding More Than 4 Effects in the Mixer


In this brief guide, I will demonstrate how to incorporate an extra 4 effects on 1 track in the channel mixer, resulting in a total of 8.

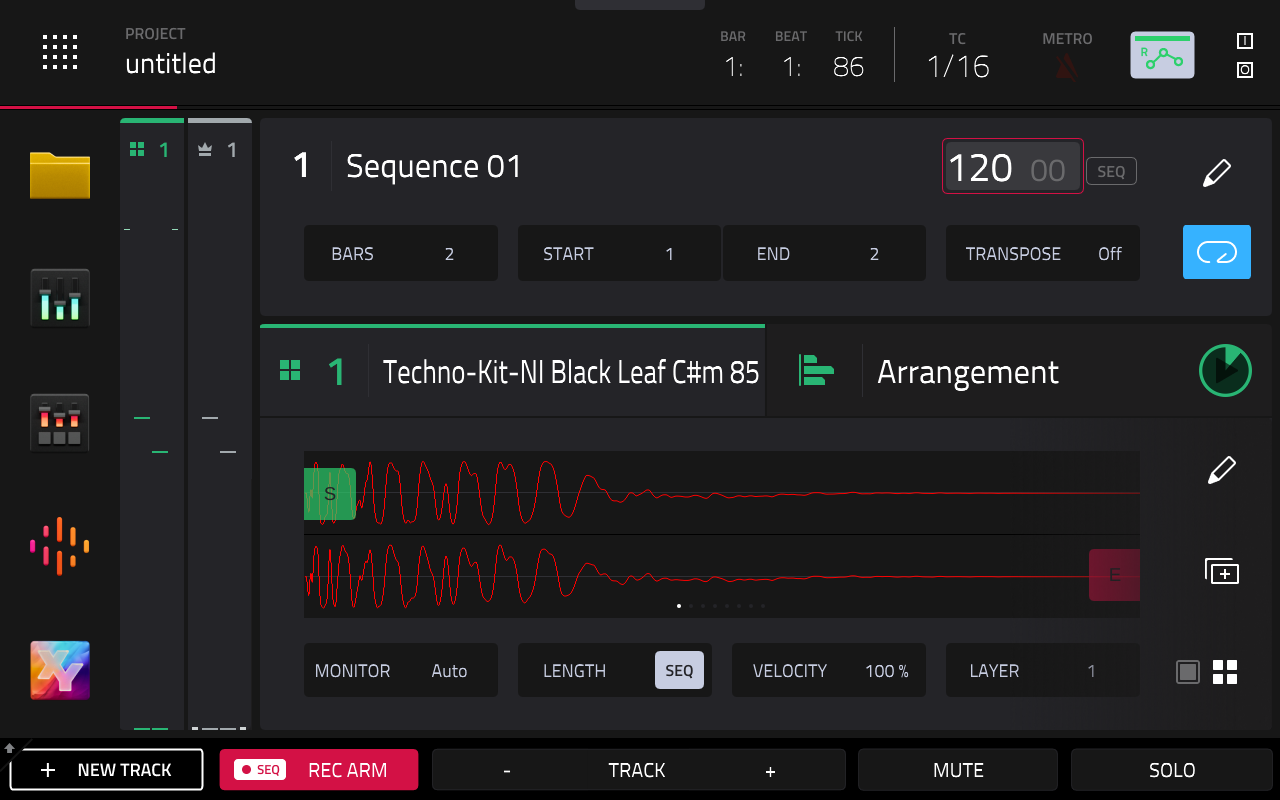

1. Begin by choosing your track on which you wish to apply more than 4 effects. In this instance, I have selected a Drum program.

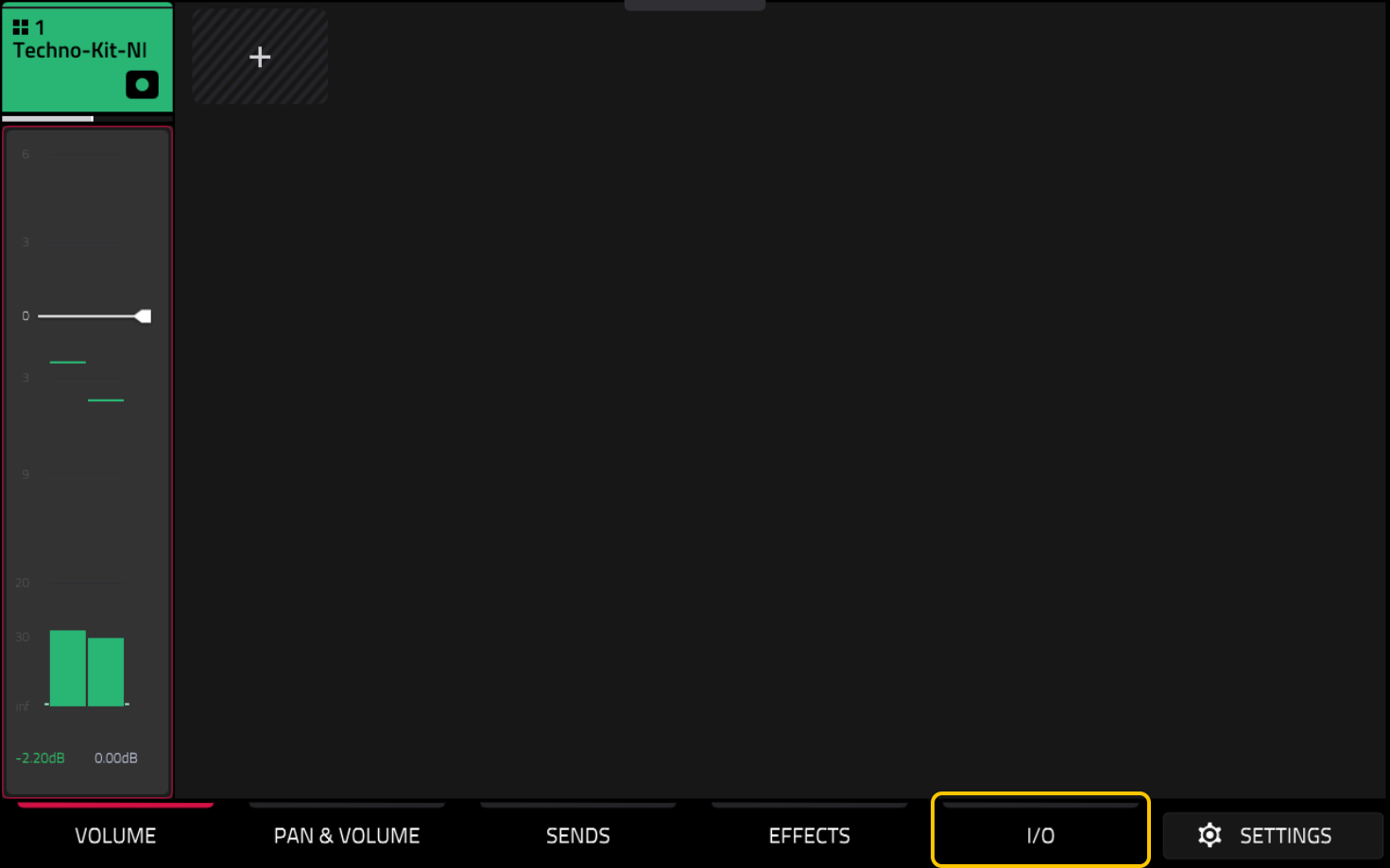

2. Navigate to the Channel Mixer and select I/O.

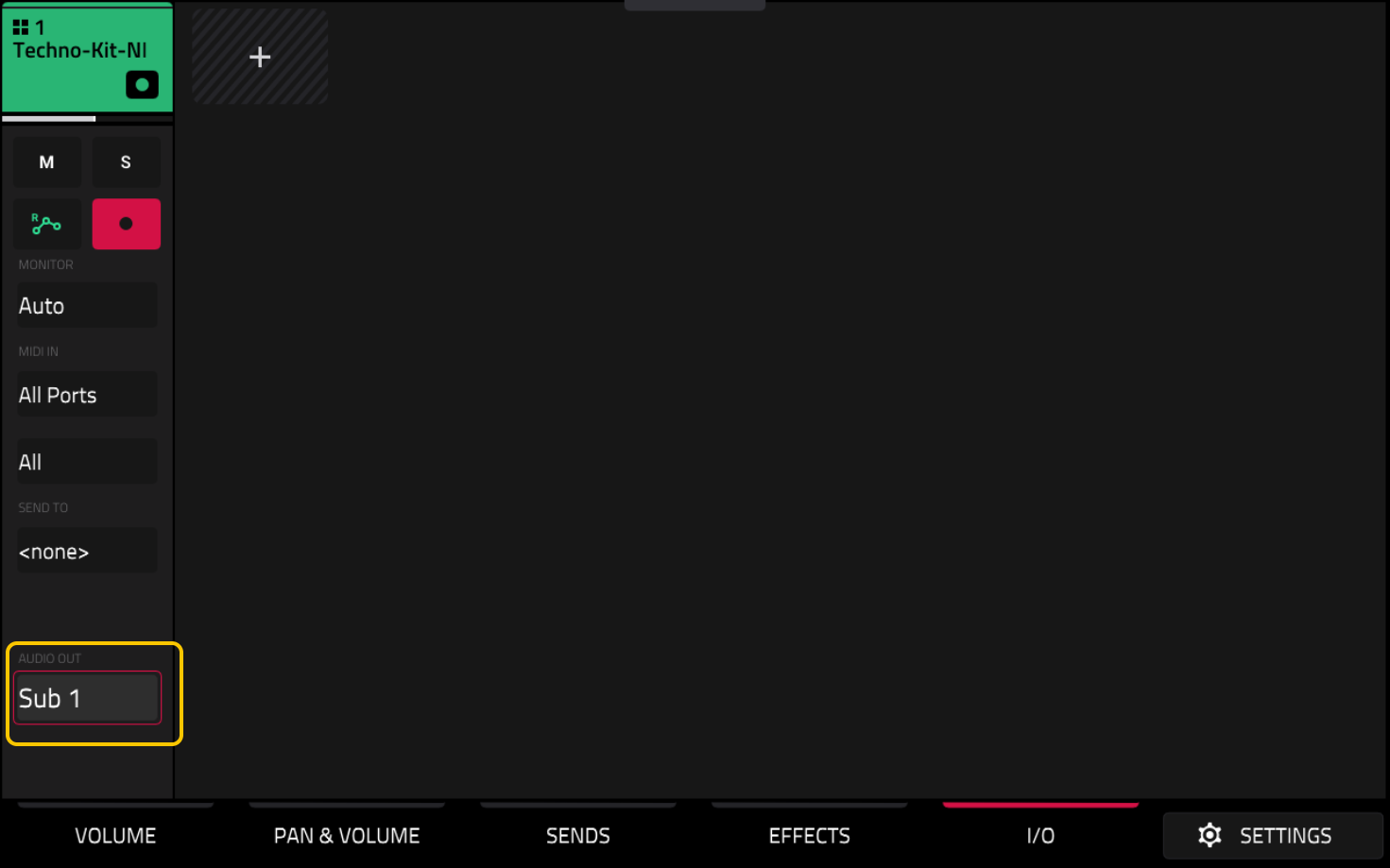

3. Change the Audio Out to Sub 1 (Note: this can be applied to additional tracks with up to 8 Sub Channels, keeping in mind that only 1 Sub Channel is permitted per track).

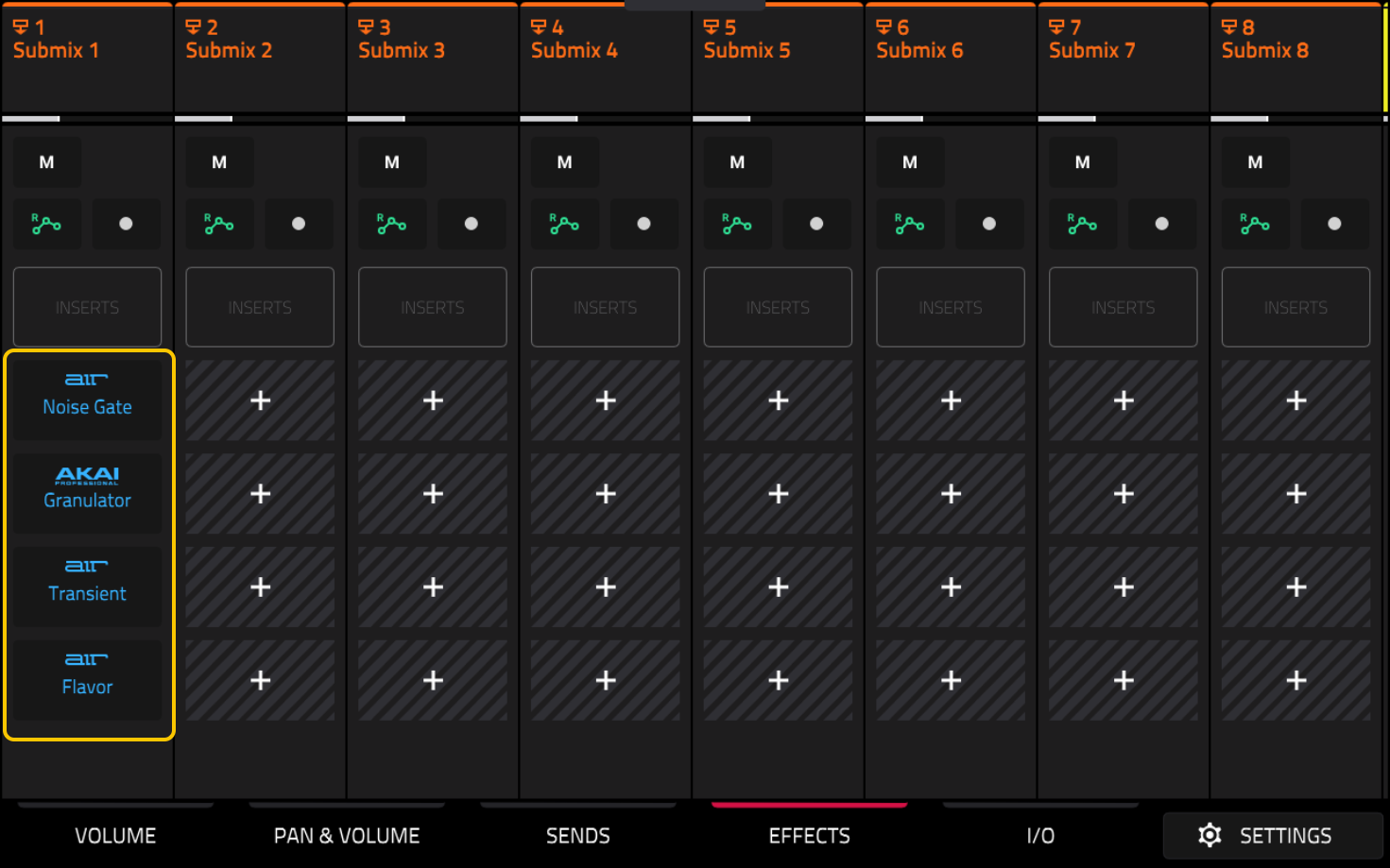

4. Tap on Effects, then swipe right on the touch display until you reach Submix 1.


5. You can now incorporate 4 more effects on the Submix 1 channel after your original effects on the track.



6. You can also send an additional track to Sub 1 if you wish to include the same effects.
